Bit of a tidy up..
on: 03 August, 2020, 07:57:42 AM
I had a few things running direct from my battery, lights, horn, battery tender and an earth wire spliced in for the rear brake light module plus all the inline fuses..

I forgot to take a photo before I started, but, although it was safe, it wasn't pretty.

I purchased an auxiliary fuse box, removed the tray under the seat and it mounted direct to the base. It looks a bit messy but that's because of the bikes wring harness and other stuff.

This is what I removed, the bulk of it is excess wiring length that came with the horn's wiring harness.

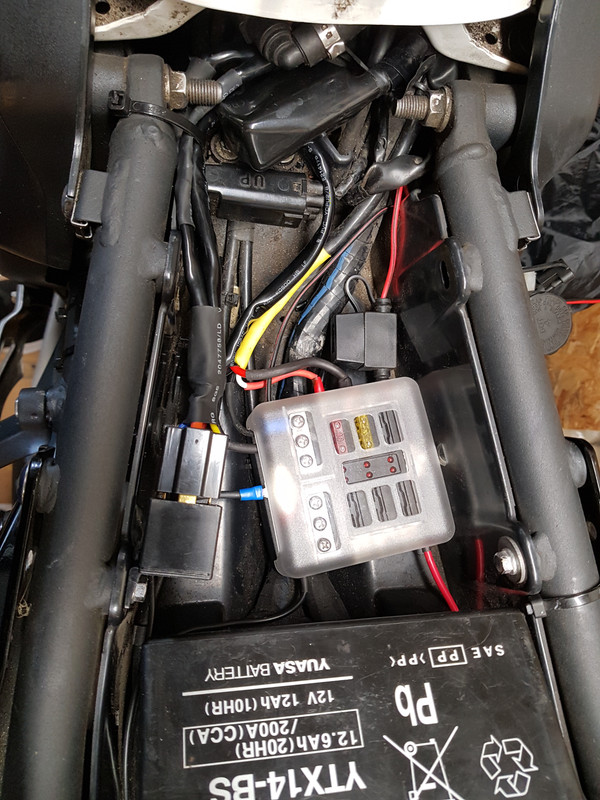

It now looks like this;

I've wired the battery tender direct to the live/neg supply to the fuse box and the neg coming in at a "T" angle is the earth for the rear light.

The shortened horn harness and rely are fixed to the left hand frame (sat on the bike)

I've made a bracket that now holds the battery in place.



Last Edit: 03 August, 2020, 08:10:36 AM by af1-windy
