Rear suspension link service
« on: 14 May, 2019, 01:11:30 PM »
Hi all

I just completed service on the lower suspension linkage on my 2012 Tiger 1050 se

Before removing bolts,
bike on centerstand
floor jack or car stand under sump
and chock the rear wheel with a few pieces of wood so it does not drop to the floor,
makes assembly and realignment easier, but not a big deal if it does plop to the floor

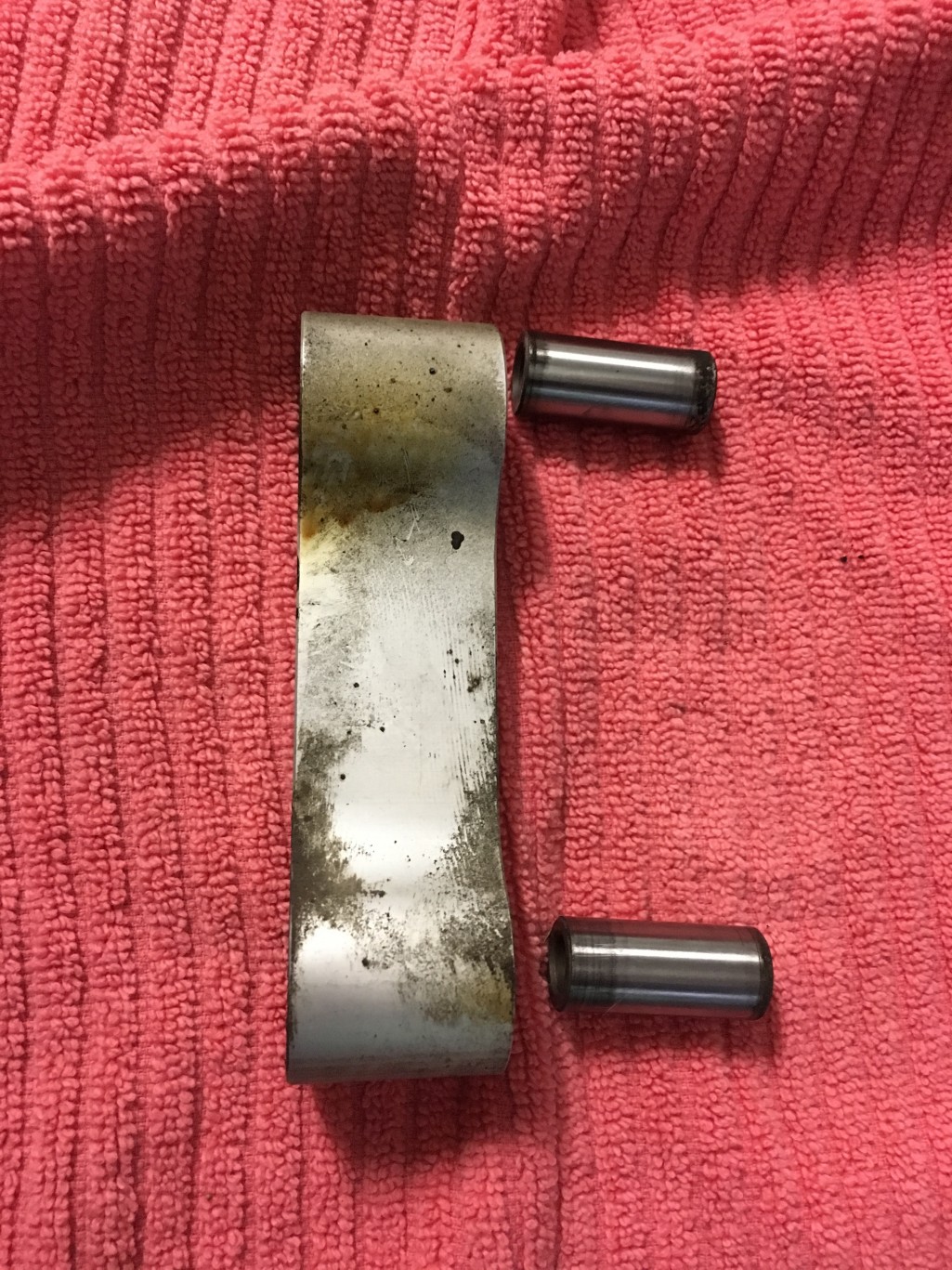

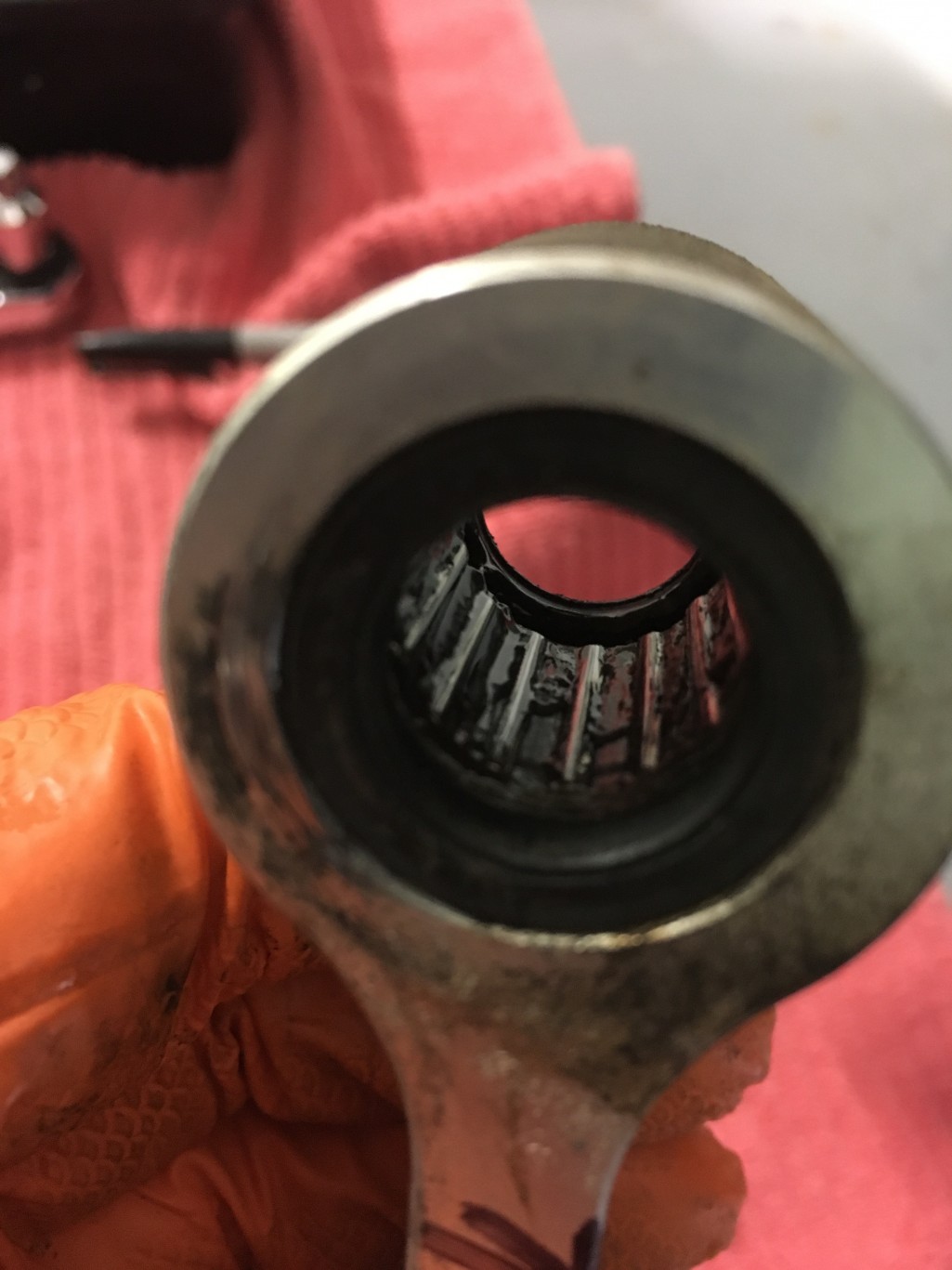

Removed all bolts, plates, cleaned and greased the roller pin bearings

They were not completely dry, but not well lubricated either.

Marine grease, Loctite and all torqued back to specs

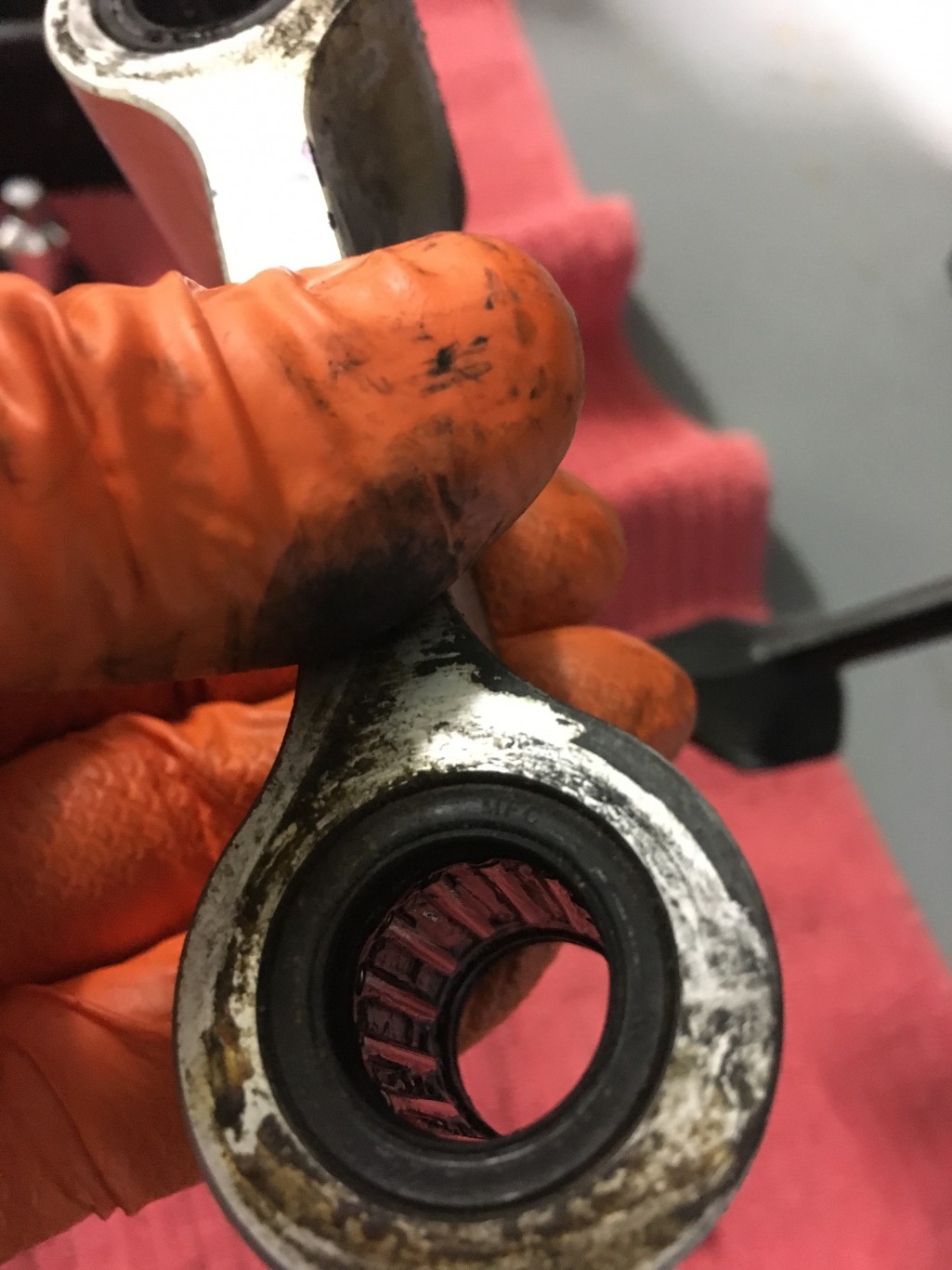

This is what it looks like pre clean.... needles to say it is now autoclave hospital grade sterilized!

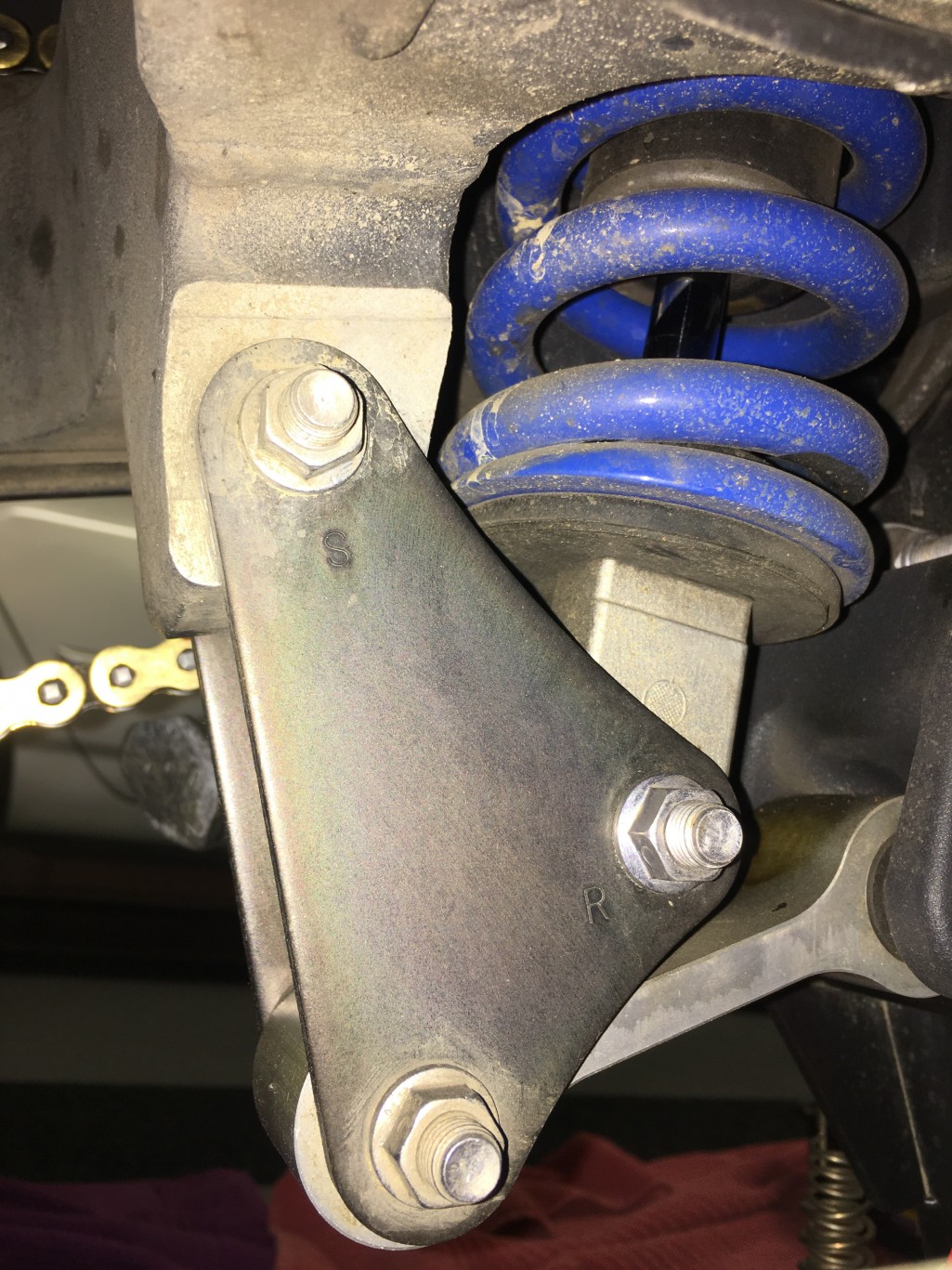

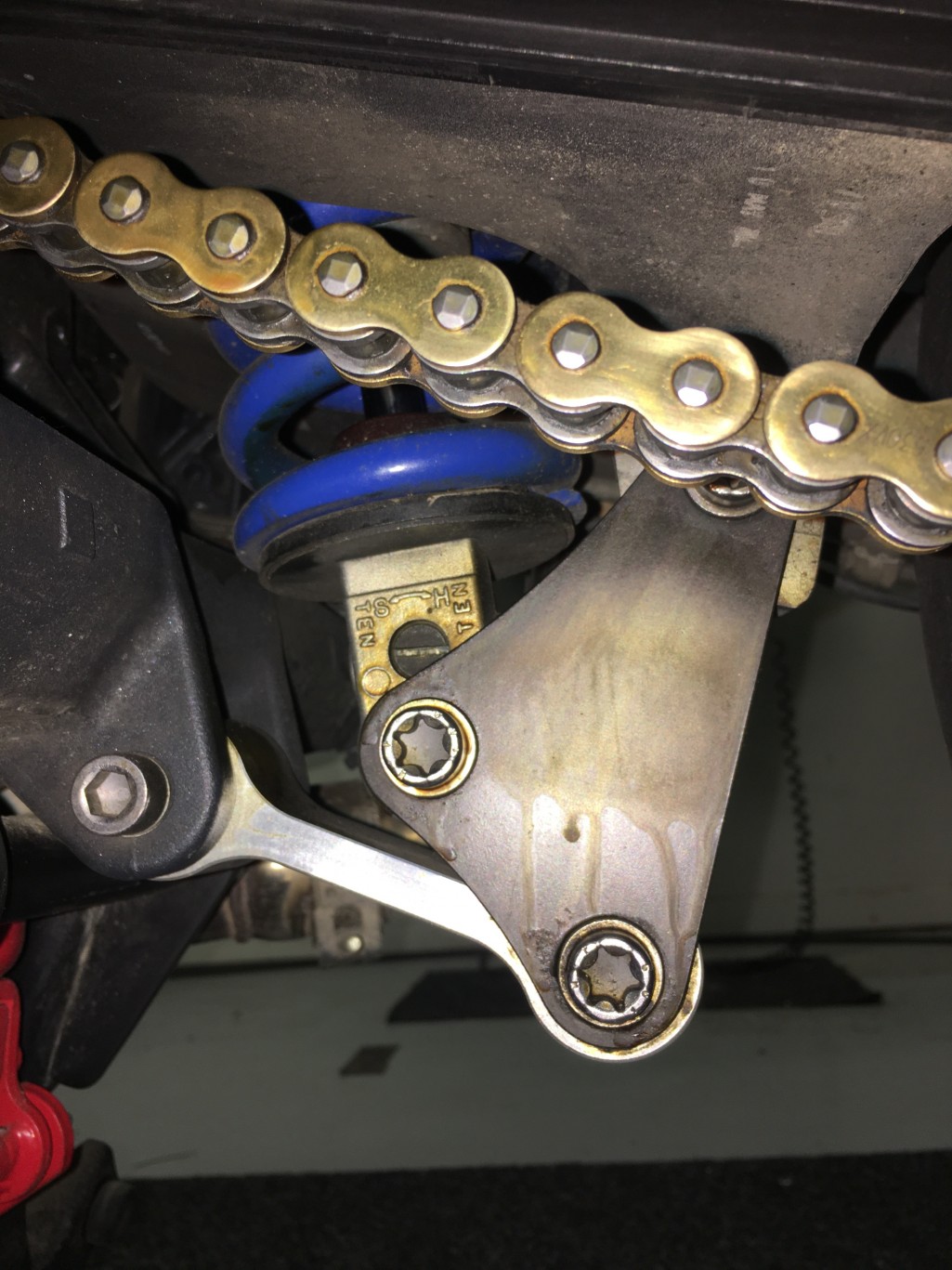

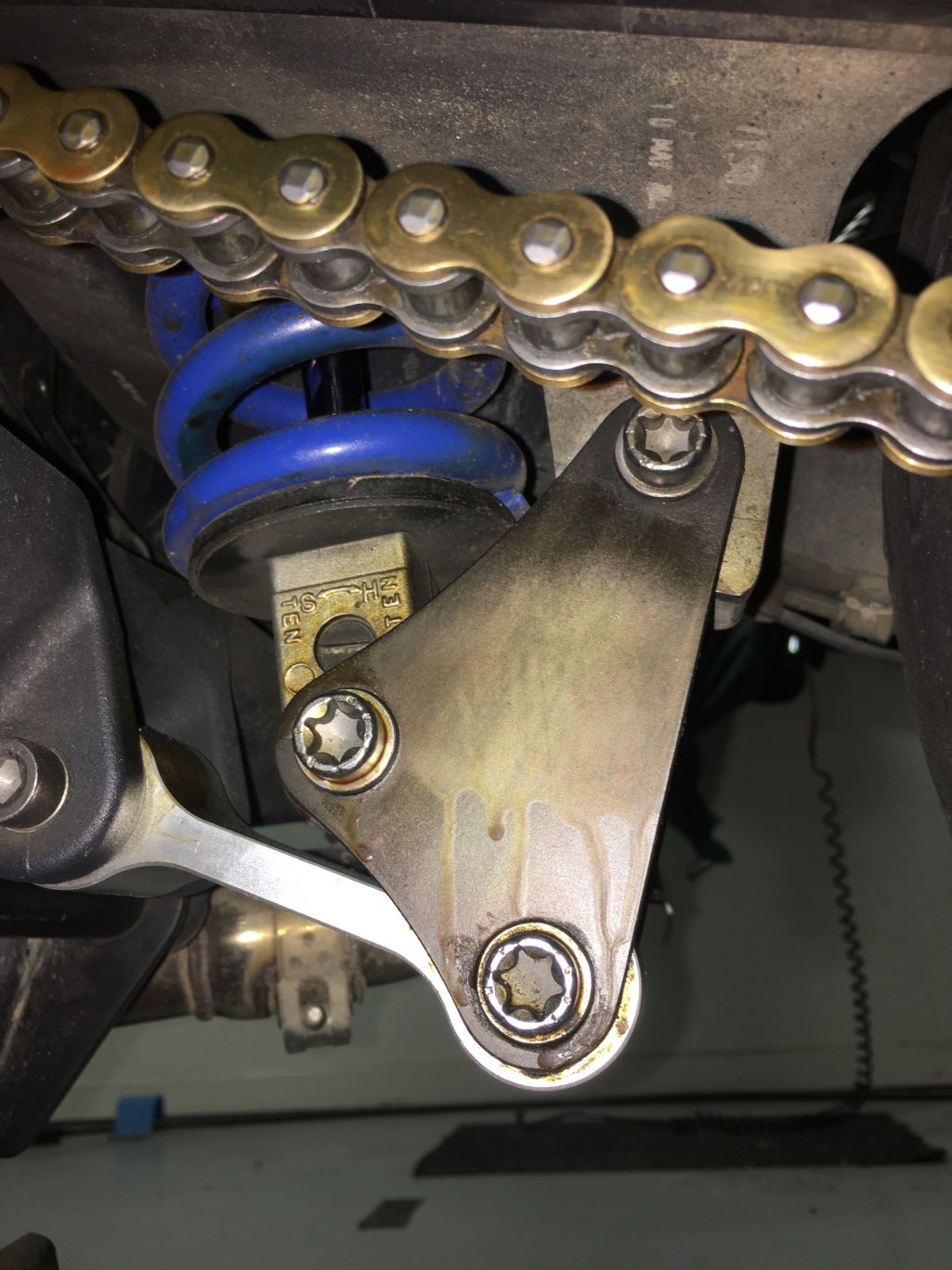

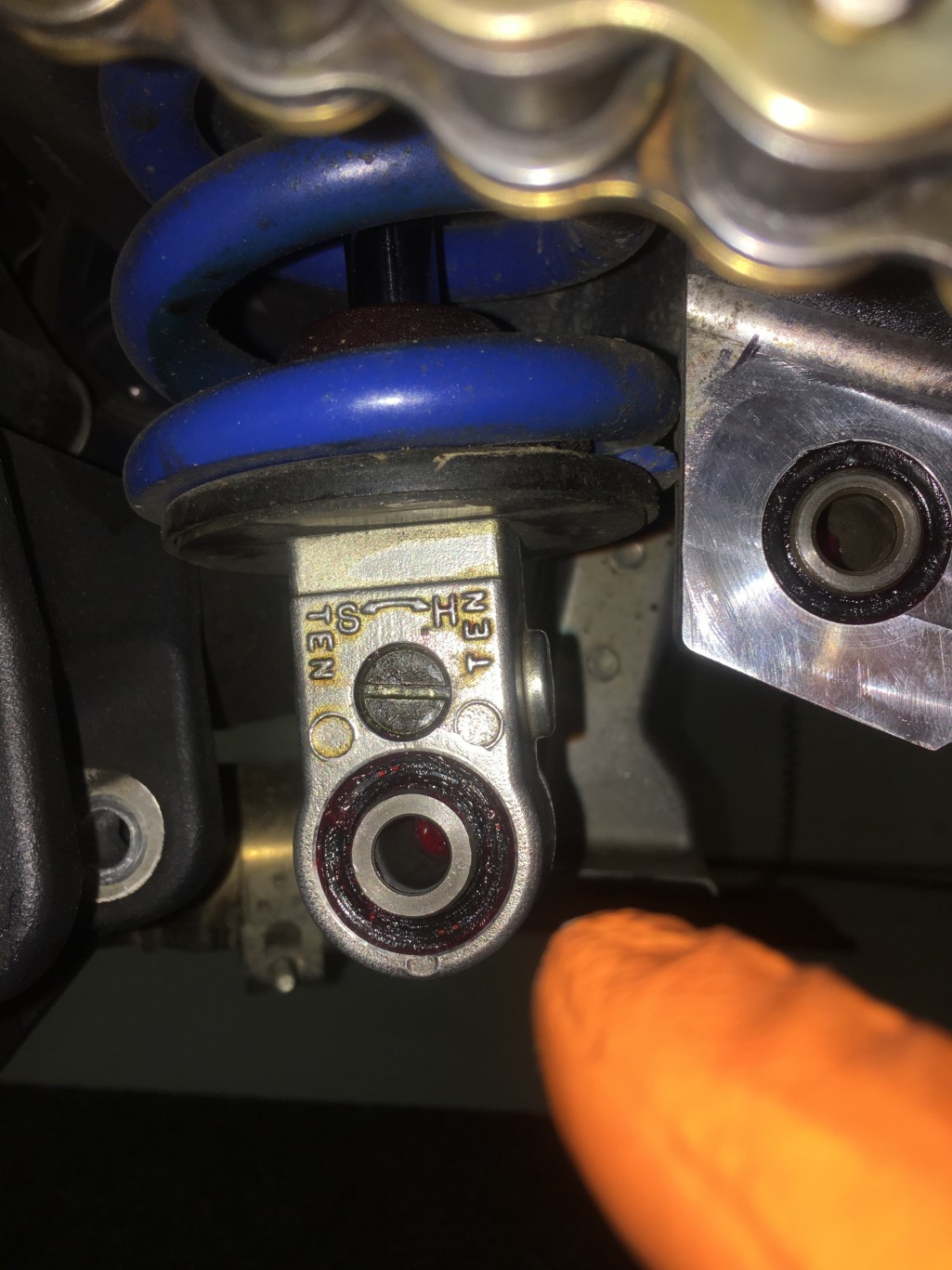

Rear suspension linkage







« Last Edit: 14 May, 2019, 01:15:39 PM by Zevk »

Offline mr t

  • Tiger Member
  • **
  • Posts: 30
  • Bike/Model: 2010 Tiger 1050SE
  • City / Town: West Sussex
  • Country: UK
Re: Rear suspension link service
« Reply #1 on: 14 May, 2019, 03:25:42 PM »
Nice little tutorial. Can i ask the size of the Touq socket you used?

Offline seangee

  • Tiger Supporter
  • Tiger God
  • *
  • Posts: 2344
  • Bike/Model: 2016 Tiger Sport
  • City / Town: Bracknell
  • Country: United Kingdom
Re: Rear suspension link service
« Reply #2 on: 14 May, 2019, 03:30:27 PM »
Nice one. Funnily enough its what I was planning today when I decided to go for a ride instead  :001:
Nothing is foolproof to a sufficiently talented fool.

Offline Zevk

  • Tiger Pro
  • ***
  • Posts: 151
  • Bike/Model: Tiger 1050 SE 2012
  • City / Town: Melbourne
  • Country: Australia
Re: Rear suspension link service
« Reply #3 on: 14 May, 2019, 07:50:28 PM »
I used an Alan bit as my torx bit had double the amount of splines and did not fit

The Alan bit was a good tight fit but dont know the size offhand Ill measure and let you know

Ring spanner 14 mm for the nut

Torque to 55 nm

Offline Paul2bikes

  • Tiger God
  • *****
  • Posts: 6515
  • DILLIGAF
  • Bike/Model: 2014 Tiger Sport 1050
  • City / Town: High Peak
  • Country: UK
Re: Rear suspension link service
« Reply #4 on: 14 May, 2019, 08:06:10 PM »
*Originally Posted by mr t [+]
Nice little tutorial. Can i ask the size of the Touq socket you used?

T55
The greatest deception men suffer is from their own opinions.
Leonardo da Vinci

Offline turtle

  • Tiger Master
  • ****
  • Posts: 507
  • Bike/Model: 2011 Tiger 1050 SE
  • City / Town: Central IL
  • Country: USA
Re: Rear suspension link service
« Reply #5 on: 15 May, 2019, 06:17:14 PM »
Good post!  How many miles on your Tiger?
Bill
2011 Tiger 1050 SE

Offline Zevk

  • Tiger Pro
  • ***
  • Posts: 151
  • Bike/Model: Tiger 1050 SE 2012
  • City / Town: Melbourne
  • Country: Australia
Re: Rear suspension link service
« Reply #6 on: 15 May, 2019, 11:25:19 PM »
2012 1050 SE 18,000 km

Offline turtle

  • Tiger Master
  • ****
  • Posts: 507
  • Bike/Model: 2011 Tiger 1050 SE
  • City / Town: Central IL
  • Country: USA
Re: Rear suspension link service
« Reply #7 on: 16 May, 2019, 03:00:30 PM »
Might be time to give mine a once over.
Bill
2011 Tiger 1050 SE

Offline leighz

  • Tiger Member
  • **
  • Posts: 12
  • Bike/Model: Tiger Sport 1050
  • Country: UK
Re: Rear suspension link service
« Reply #8 on: 20 May, 2019, 02:19:25 PM »
handy - about to do the same

are all the bolts (drag link included) 55Nm?

Offline Timbox

  • Tiger Supporter
  • Tiger God
  • *
  • Posts: 3369
  • Bike/Model: Helga
  • City / Town: Newport
  • Country: United Kingdom
Re: Rear suspension link service
« Reply #9 on: 20 May, 2019, 04:35:41 PM »
*Originally Posted by leighz [+]
handy - about to do the same

are all the bolts (drag link included) 55Nm?

Yes, and strictly speaking nuts are single use only, though as long as they still appear to lock theyre fine
